ECSC 2025

Challenge: Blue Mouse

Category: Misc

Points: TBD

Table of Contents

Challenge Description

Someone drew the flag in a Paint-like program using a Bluetooth mouse, but with poor handwriting. Can you extract and visualize the mouse movements to reconstruct the drawing and read the flag?

Artifacts

Solution Overview

This challenge involves analyzing a packet capture (PCAP) file containing Bluetooth Low Energy (BLE) mouse movements. The challenge description states that someone drew the flag in a Paint-like program using a Bluetooth mouse, but with poor handwriting. Our goal is to extract and visualize the mouse movements to reconstruct the drawing and read the flag.

Tools Used

  • tshark/Wireshark - For analyzing the packet capture file
  • Python 3 - For parsing mouse data and visualization
  • matplotlib - For plotting the mouse movements
  • struct - For parsing binary data

Solution

1. Initial Analysis

First, I examined the provided file to understand what we're working with:

file mouse.pcap
# Output: pcap capture file, microsecond ts (little-endian) - version 2.4 (Bluetooth HCI H4 with pseudo-header, capture length 262144)

This confirmed it's a Bluetooth HCI (Host Controller Interface) capture file, which makes sense for a Bluetooth mouse.

2. Inspecting the Packet Capture

Using tshark, I inspected the packets to understand their structure:

tshark -r mouse.pcap -c 20

All packets were ATT (Attribute Protocol) Handle Value Notifications on handle 0x0028. This is the standard way Bluetooth LE HID (Human Interface Device) devices like mice send data to the host.

3. Extracting Mouse Data

I extracted the actual payload data from all packets:

tshark -r mouse.pcap -T fields -e btatt.value > /tmp/mouse_data.txt

This gave me 6,879 packets of mouse data in hexadecimal format. Each packet follows the standard HID mouse report format:

  • Byte 0: Button states (bit 0 = left button, bit 1 = right button)
  • Bytes 1-2: X movement delta (signed 16-bit integer, little-endian)
  • Bytes 3-4: Y movement delta (signed 16-bit integer, little-endian)
  • Bytes 5-6: Wheel/scroll data (not relevant for drawing)

4. Creating a Visualization Script

The key insight is that when drawing in a Paint-like program, you hold down the left mouse button while moving to draw lines. So I needed to:

  1. Parse each mouse movement packet
  2. Track cumulative X and Y positions
  3. Draw lines between consecutive positions only when the left button is pressed

Here's the Python script I created (see solve/visualize_mouse.py):

#!/usr/bin/env python3
import struct
import matplotlib.pyplot as plt

# Read the extracted mouse data
with open('/tmp/mouse_data.txt', 'r') as f:
    lines = f.readlines()

# Parse mouse movements and track positions
x, y = 0, 0
positions = []

for line in lines:
    line = line.strip()
    if not line or len(line) < 14:  # Need at least 7 bytes (14 hex chars)
        continue

    try:
        data = bytes.fromhex(line)

        # Extract button state
        buttons = data[0]

        # Extract X and Y deltas as signed 16-bit integers (little-endian)
        # This is crucial because mouse movements can be negative
        x_delta = struct.unpack('<h', data[1:3])[0]
        y_delta = struct.unpack('<h', data[3:5])[0]

        # Update cumulative position
        x += x_delta
        y += y_delta

        positions.append((x, y, buttons))

    except Exception as e:
        print(f"Error parsing line: {line} - {e}")
        continue

print(f"Total positions: {len(positions)}")

# Create visualization with stretched Y axis for better readability
fig, ax = plt.subplots(figsize=(20, 10))

# Draw lines only when left button (bit 0) is pressed
for i in range(len(positions) - 1):
    x1, y1, btn1 = positions[i]
    x2, y2, btn2 = positions[i + 1]

    # Check if left button is pressed (bit 0 = 1)
    if btn1 & 0x01:
        ax.plot([x1, x2], [y1, y2], 'b-', linewidth=2)

# Invert Y axis because screen coordinates have Y increasing downward
ax.invert_yaxis()
ax.set_title('Mouse Drawing - Blue Mouse CTF Challenge', fontsize=16)
ax.grid(True, alpha=0.3)

plt.tight_layout()
plt.savefig('mouse_drawing.png', dpi=200, bbox_inches='tight')
print("Drawing saved to mouse_drawing.png")

5. Key Decisions

  • Signed integers: Used struct.unpack('<h', ...) for signed 16-bit little-endian integers because mouse movements can be in any direction (positive or negative)
  • Cumulative positioning: Added each delta to running totals to get absolute screen positions
  • Button filtering: Only drew lines when buttons & 0x01 was true (left button pressed)
  • Y-axis inversion: Screen coordinates typically have Y increasing downward, so I inverted the axis
  • Stretched visualization: Initially the Y-axis was compressed making text unreadable. Removing ax.set_aspect('equal') allowed matplotlib to stretch the Y-axis proportionally to the figure size, making the handwritten text legible

6. Reading the Flag

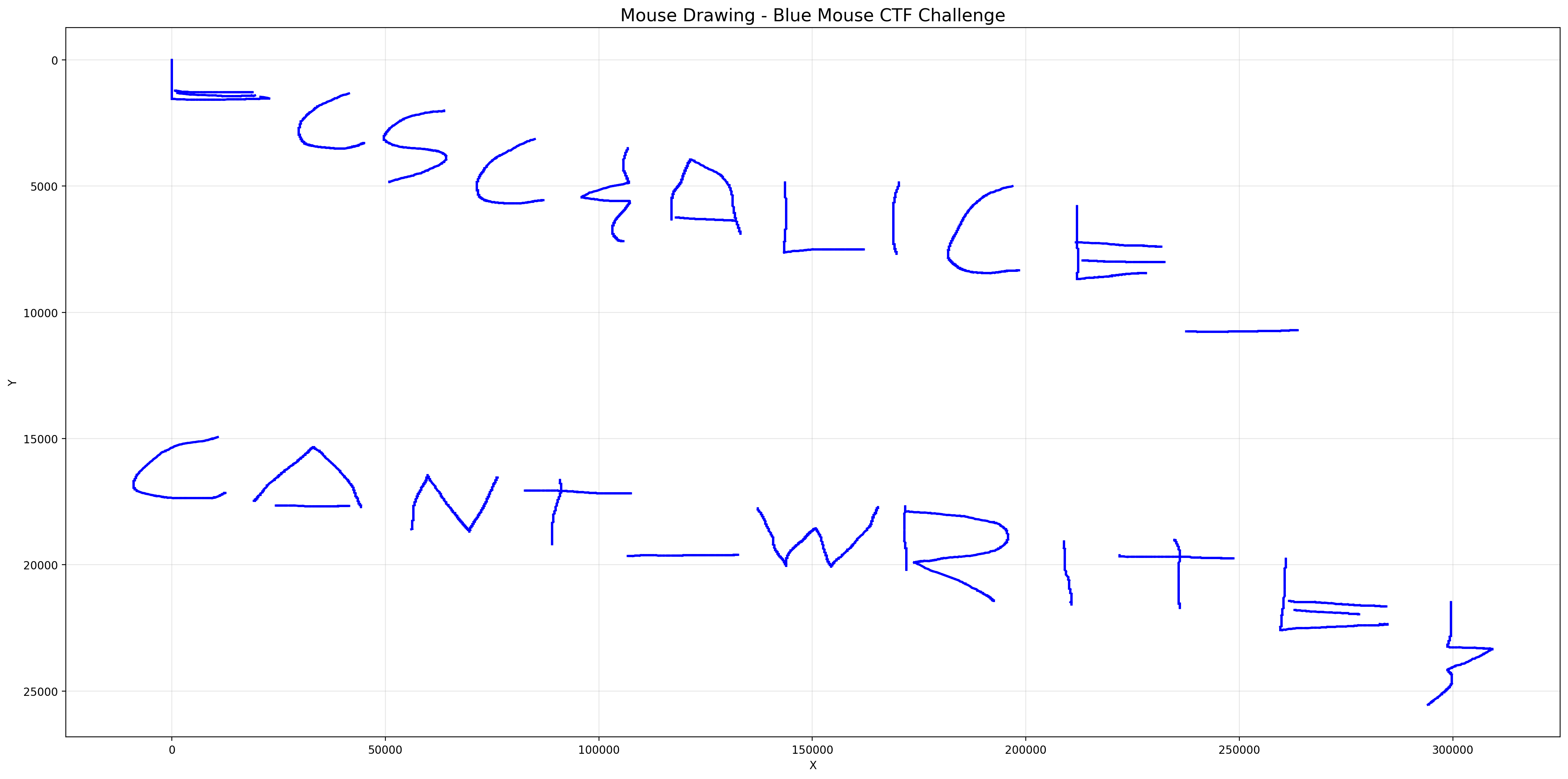

After running the script and generating the visualization with proper Y-axis stretching, the mouse drawing clearly showed the handwritten text (albeit with poor handwriting as mentioned in the challenge description):

Mouse Drawing Visualization

The flag is: ECSC{ALICE_CANT_WRITE}

Flag

ECSC{ALICE_CANT_WRITE}
